1967 Chevelle SS


Sales / Repairs:
1-800-988-2381

Tech. Support:
1-503-452-1410

Fax:
1-503-244-7301






Calculators




DIS Weather


Recommended:


Website Login:

Password:



 Factory Options


Document

Description

Part Number





SS Convertible

Body: ?

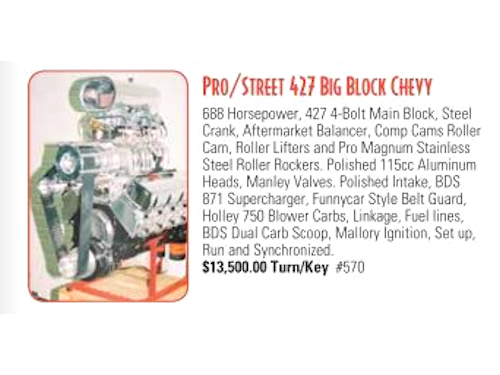

427 CID V-8 Engine
Big Al's Toy Box Crate Engine

BA: 570





Air Conditioning

Unknown





Power Brakes

Unknown

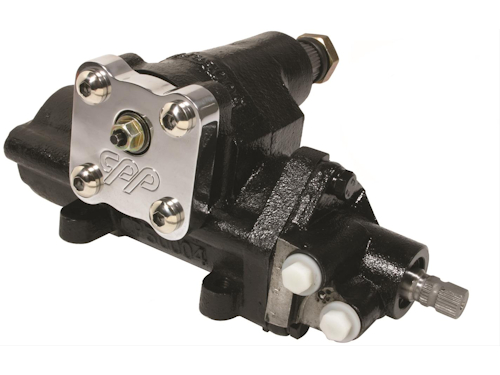

Power Steering
Quick Ratio, 14:1

CP: CP50004



 Original Accessories


Document

Description

Part Number





Blinker Tachometer

Unknown





Center Console

Unknown





Seat Headrests

Unknown





8-Track Tape Player

Unknown



Floor Mats

Unknown





Rear View Mirror
8" Inside Non-Glare

985152





Trunk Light

Unknown





Choke Cable

Ford: C5ZZ-9700-AR





Windshield Washer Reservoir

Unknown



 Aftermarket Engine Parts


Document

Description

Part Number

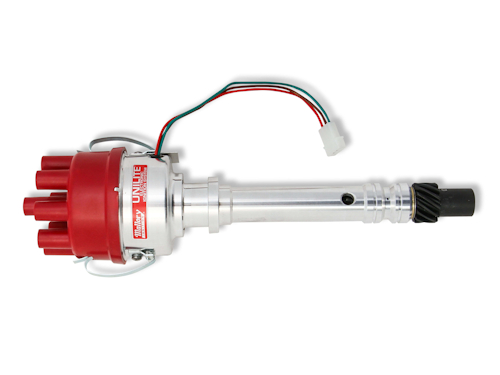

Unilite Distributor

Mallory: 3748201

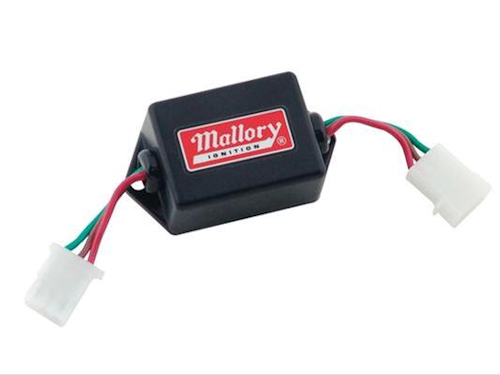

Unilite Circuit Guard

Mallory: 29371

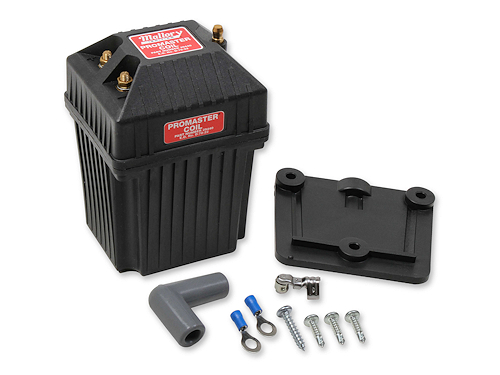

Ignition Coil

Mallory: 29440

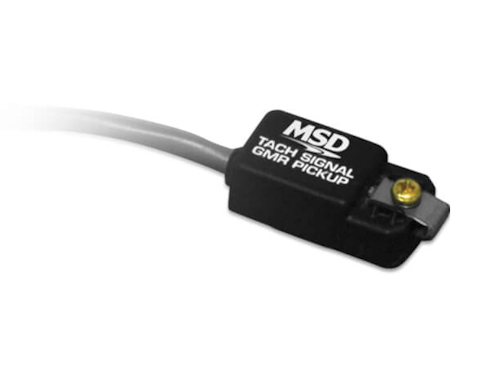

Tachometer Pickup
Needed for tach compatibility

MSD: 89181

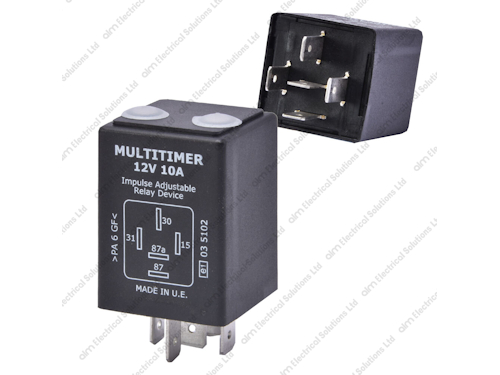

Multitimer Relays
Fan Control

T.40.205

Fan Shroud
17 5/8" x 27 1/4" x 3/4"

Northern: Z40010

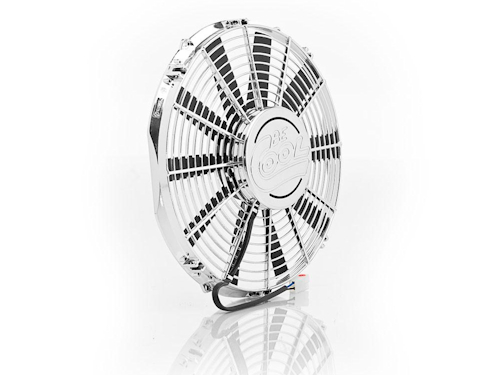

Straight Blade Cooling Fans (x2)
12" Chrome - 1230 CFM

Be Cool: 75109

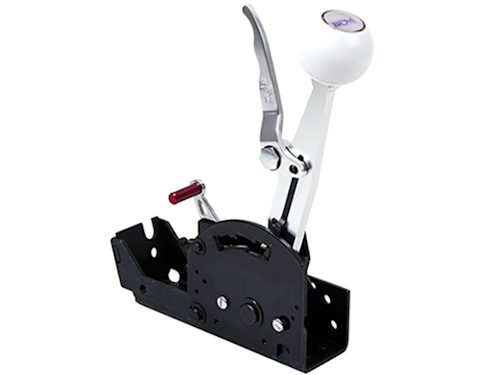

B&M Automatic Pro Stick Shifter

B&M: 80702

High Torque Mini Starter
Replaced PowerMaster XS Torque Starter

Tilton: 54-40001
PowerMaster: 9500



Weiand Pop Off Valve
Modified with Boost gauge fitting

Weiand: W510



V-8 Sportsman Fogger System
Modified NOS kit with spray plates

NOS: 05088NOS



Supercharger Linkage Kit
For Dual inline Carbs

Weiand: 7167

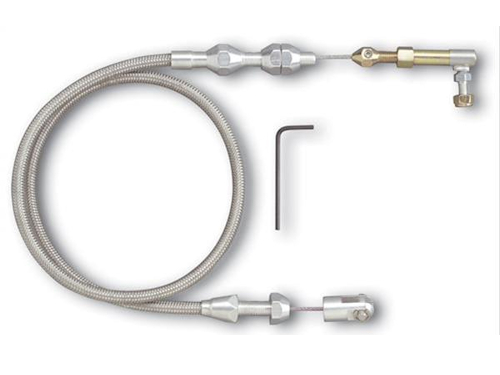

Blower Drive Throttle Cable

Lokar: TCP-1000BLD



Harmonic Balancer
ATI Super Damper Harmonic Balancer

ATI: 917060K

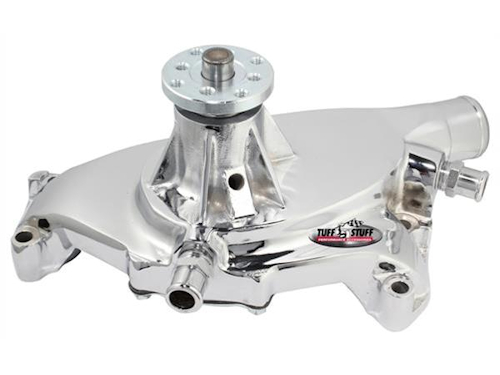

Mechanical Water Pump
High-Volume, Counterclockwise, Short

Tuff Stuff: 1495ABREV

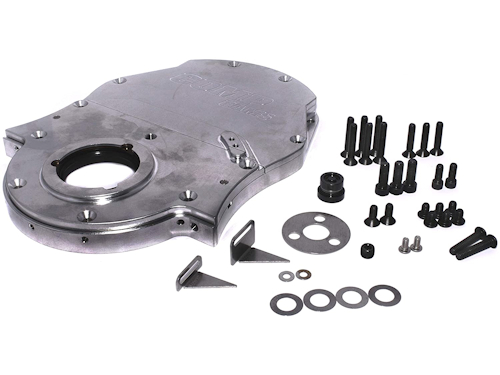

Timing Cover
3-piece Billet Aluminum

COMP Cams: 312

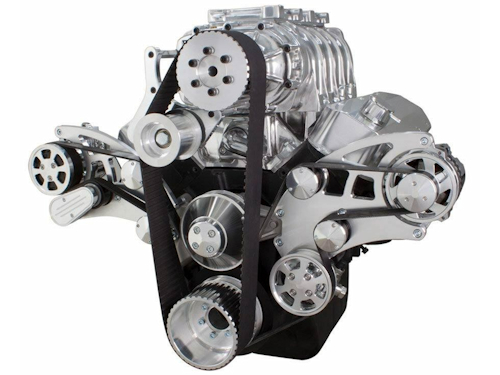

Serpentine Belt System
Alternator, Water Pump, AC & PS

CVF:
454SC-WRAPTOR-AC

Alternator
140 Amp, Chrome 1-Wire

Tuff Stuff: CS130



 Modern Accessories


Document

Description

Part Number

The Battery Mat
8" X 20" Black, Unprinted, & Unpackaged

820BUPU





Chromed Low & High Note Horn
CL-633/CL-632

1010HC



Factory AM/FM Radio Replica
with Bluetooth

612201BT

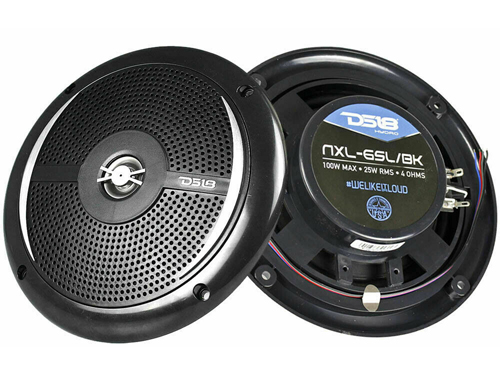

6.5" Slim Speakers
Kick panel speakers

DS18: NXL-6SL

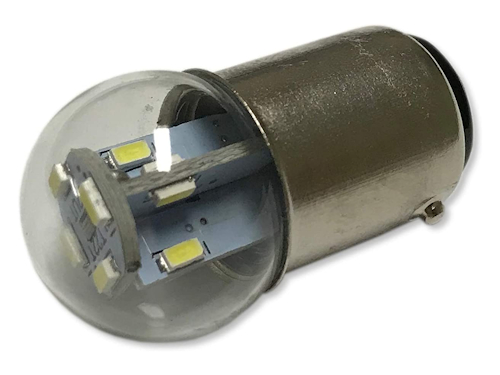

LED Type 89 Bulb Replacement
Courtesy Lights

Aero-Lites: AL-89-WW

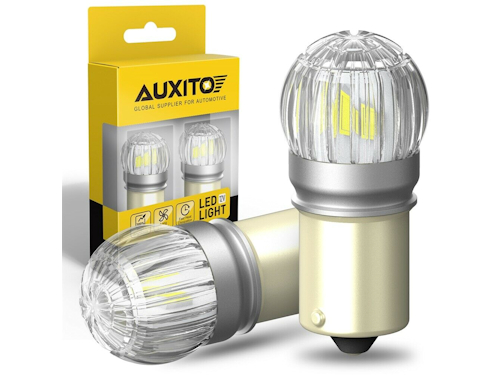

LED Type 1156 Bulb Replacement
Reverse Lights

Auxito: Unknown



Black 1.4lb. Fire Extinguisher
HalGuard w/ Roll Bar Mounting Brackets

H3R: HG100B



Billet Hood Hinge Kit
Ring Brothers clears Factory AC

RB: 1031-22657NS



 Useful Things to Know


Document

Description

Part Number

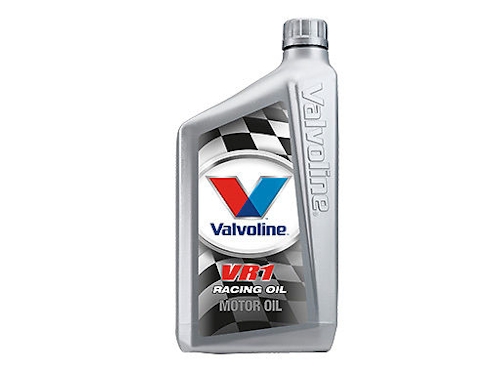

Recommended Oil
20W-50 Racing Oil (High Zinc Formula)

Valvoline VR1

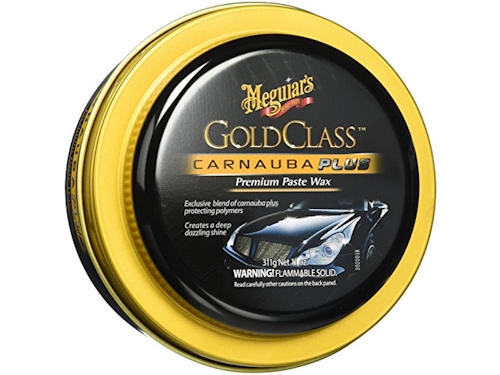

Recommended Paste Wax

Meguiar's Gold Class Carauba Plus



Recommended Oil Filter

WIX: 51794

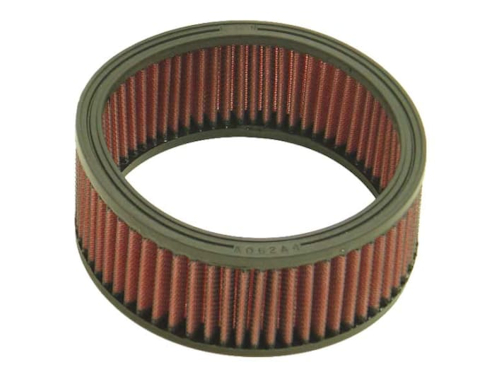

Recommended Air Filter
6-1/4" x 2-1/2" Dual Round

K&N: E-3322





Serpentine Belt (POLY-V)
8-Rib, 100"

Dayco: K5081000





Blower Belt
3" x 61.5"

615H300





Hood Hinge Piston - Volumeline
Industrial Gas Springs (IGS)/260 lbs Force

1CF052147XX1157
1CF052147XX1050



 Literature


Document

Description

Part Number

Registered Owner's Manual

3901023



Car Build Specifications

N/A

Optional Accessories Brochure

3903457



 General Maintenance Records

Date

Odometer

Description

Part / Document

09/18/2020

?????

Acquired Car

09/29/2020

52757

Car was Delivered

09/29/2020

52758

Replaced Battery (AGM)
Fitment Code: 75, Group Size: 25

Optima: 8022-091

10/07/2020

52822

Oil Change

20W-50 w/ Zinc

10/26/2020

52876

Replaced Speedometer Gear
Changed from 36T to 45T for accuracy

31431

10/31/2020

52899

Replaced Master Cylinder/Booster

N/A

04/07/2021

00000

Rebuilt Dash Assembly
Reset the odometer to 00000

N/A

04/10/2021

00000

Rebuilt Fuel Sender

N/A

05/27/2021

00311

Replaced Starter

Tilton: 54-40001

05/30/2021

00320

Replaced Fuel Cell Cap

RCI: 7031A

07/17/2021

00685

Thermostat/Coolant Change
Installed 180 Thermostat

N/A

08/04/2021

00901

Rebuilt Velcro Boot Bracket

N/A

08/21/2021

01095

Oil Change

20W-50 w/ Zinc

09/06/2021

01346

Installed Blower Spacer
Height: 2.25" (Blower Belt: 630H315)

N/A

09/08/2021

01379

Air Filter Change

K&N: E-3322

05/06/2022

01616

Oil Change

20W-50 w/ Zinc

06/07/2022

01679

Replaced Oil Pan Gasket

Fel-Pro: 1884R

06/07/2022

01679

Oil Change

20W-50 w/ Zinc
